Description
| Part Number | Frequency Range | Supply Voltage | Output Logic> | Dimensions L * W / type | Height (mm) | Operating Temperature (°C) | Datasheet(Supply Voltage) | |||
|---|---|---|---|---|---|---|---|---|---|---|
| 1.8 | 2.5 | 3.3 | 5.0 | |||||||

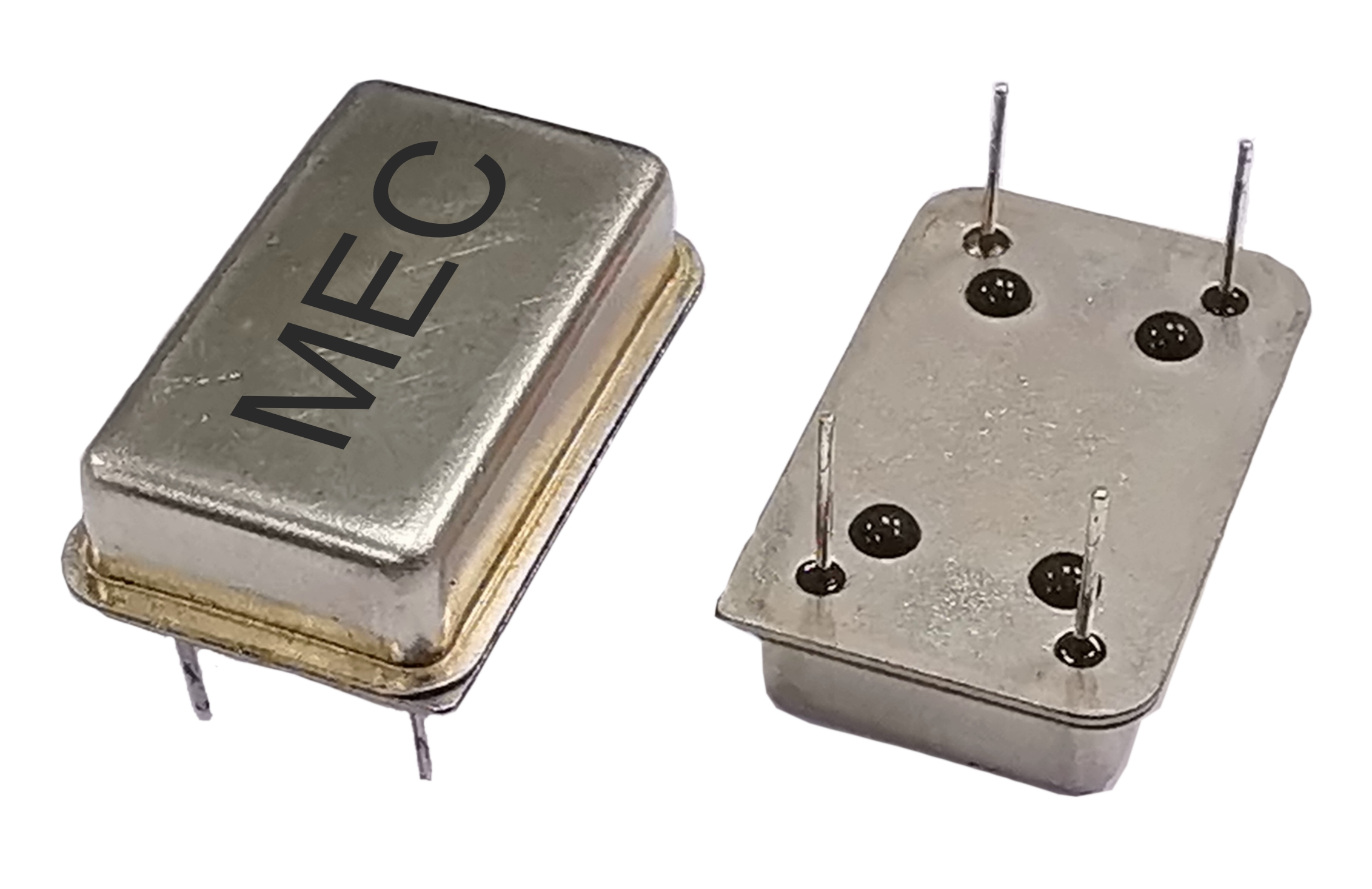

G14 |
16 ~ 50MHz, 1.25 ~ 50MHz | 1.8, 3.3 ,5.0 | CMOS | 20.2 x 12.8 | 6.0 | -40 to +85 |  |
– | |
|
G226 |
6.25 ~ 50MHz | 3.3 | CMOS | 2.5 x 2.0 | 1.0 | -40 to +85 | – | – | |
– |

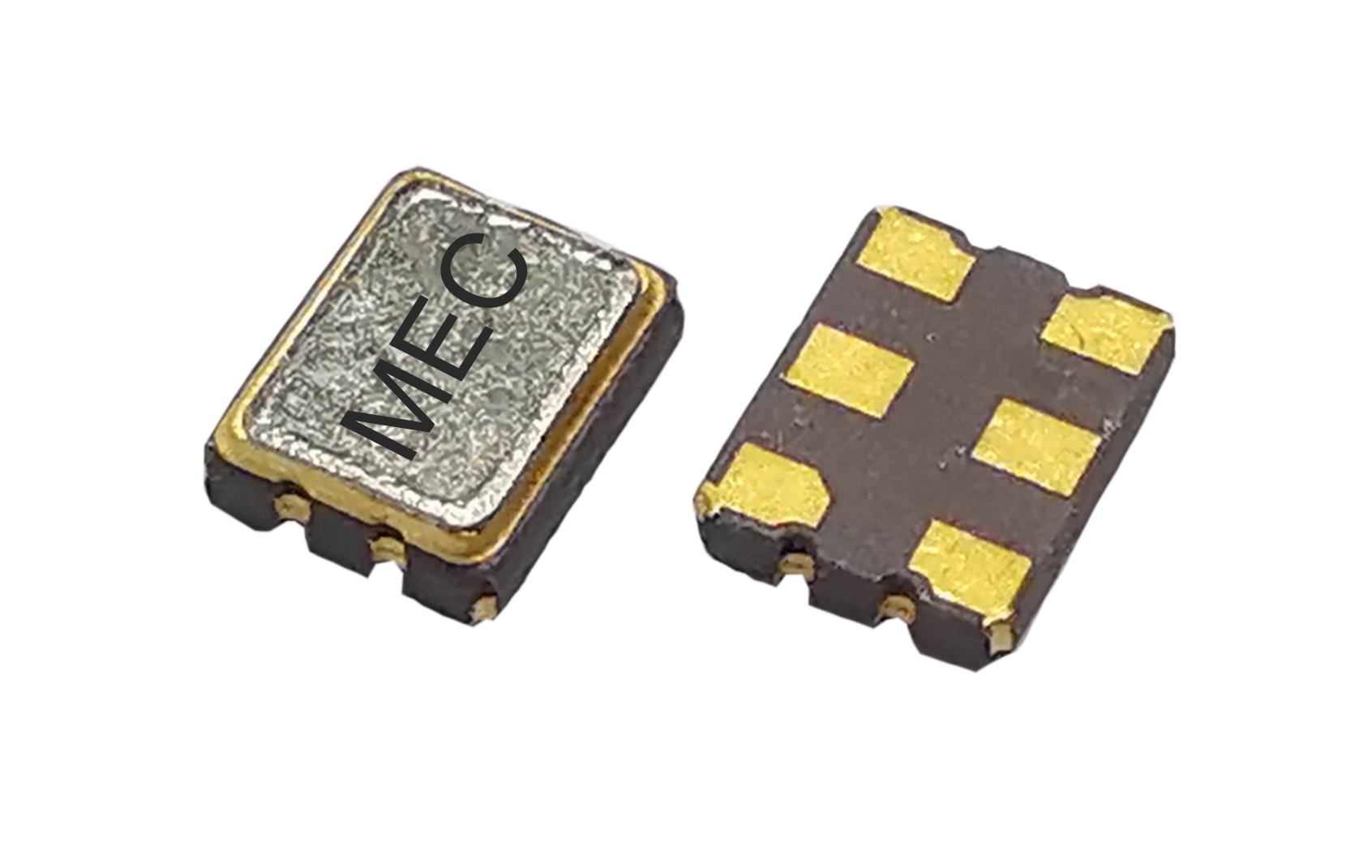

| G326 |
16 ~ 50MHz, 1.25 ~ 50MHz | 1.8, 3.3 ,5.0 | CMOS | 3.2 x 2.5 | 1.0 | -40 to +85 | |
– | |
|
G43 |
16 ~ 50MHz, 1.25 ~ 50MHz | 1.8, 3.3 ,5.0 | CMOS | 11.4 x 9.6 | 3.0 | -40 to +85 | |
– | |
|
G63 |
16 ~ 50MHz, 1.25 ~ 50MHz | 1.8, 3.3 ,5.0 | CMOS | 11.4 x 9.6 | 3.0 | -40 to +85 | |
– | |
|
G534 |
16 ~ 50MHz, 1.25 ~ 50MHz | 1.8, 3.3 | CMOS | 5.0 x 3.2 | 1.2 | -40 to +85 | |
– | |
– |
G536 |
16 ~ 50MHz | 1.8 | CMOS | 5.0 x 3.2 | 1.2 | -40 to +85 | |
– | – | – |
GS24 |
10 ~ 250MHz | 3.3 | True Sine Wave | 20.2 x 12.8 | 7.8 | -40 to +85 | |
– | – | – |
GS14 |
10 ~ 156MHz | 3.3, 5 | True Sine Wave | 20.2 x 12.8 | 6.0 | -40 to +85 | – | – | |
|

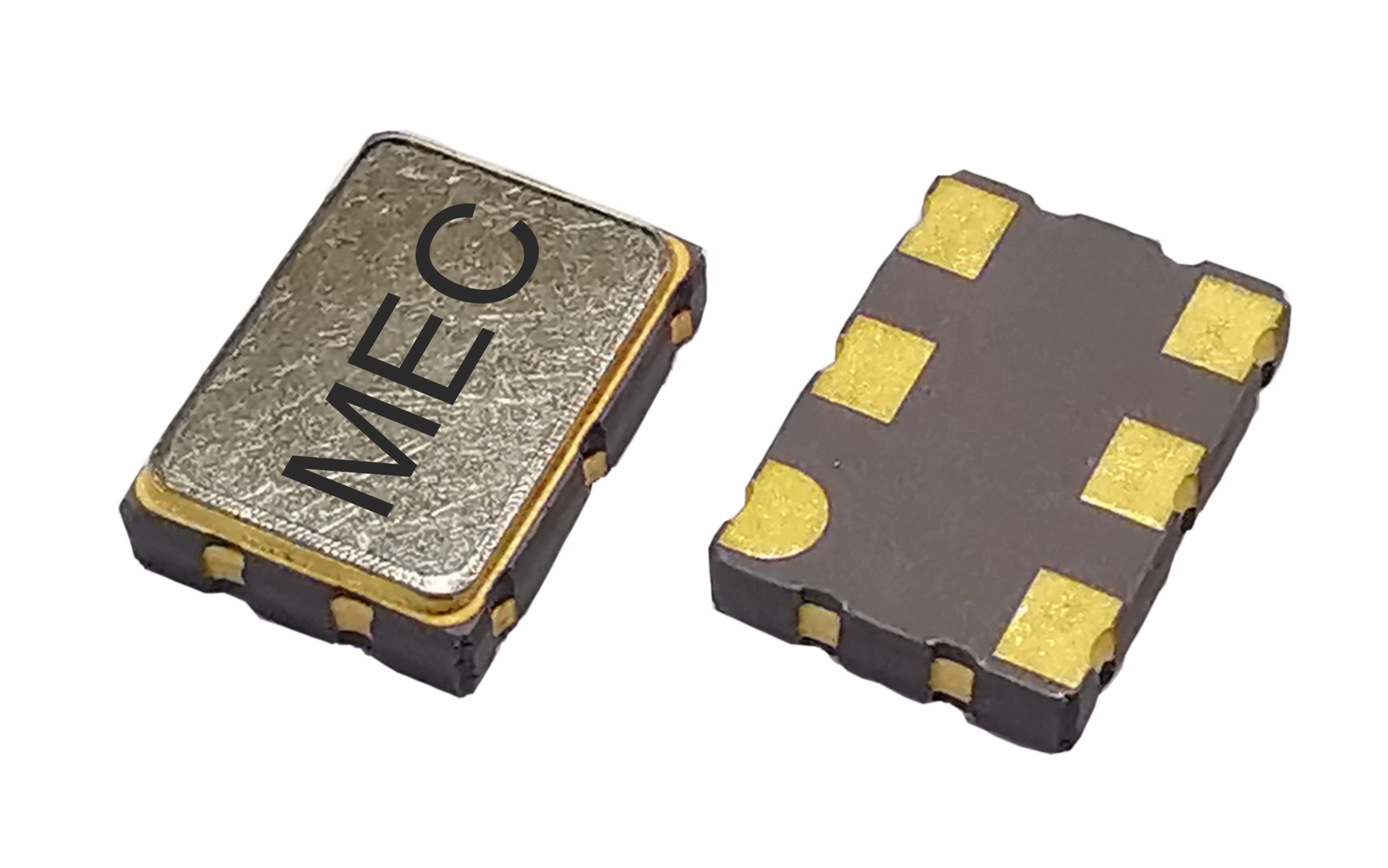

GCTQF576 |
10 ~ 250MHz | 2.5,3.3 | CMOS | 7.0 x 5.0 | 1.8 | -40 to +85 | – | |
|
– |

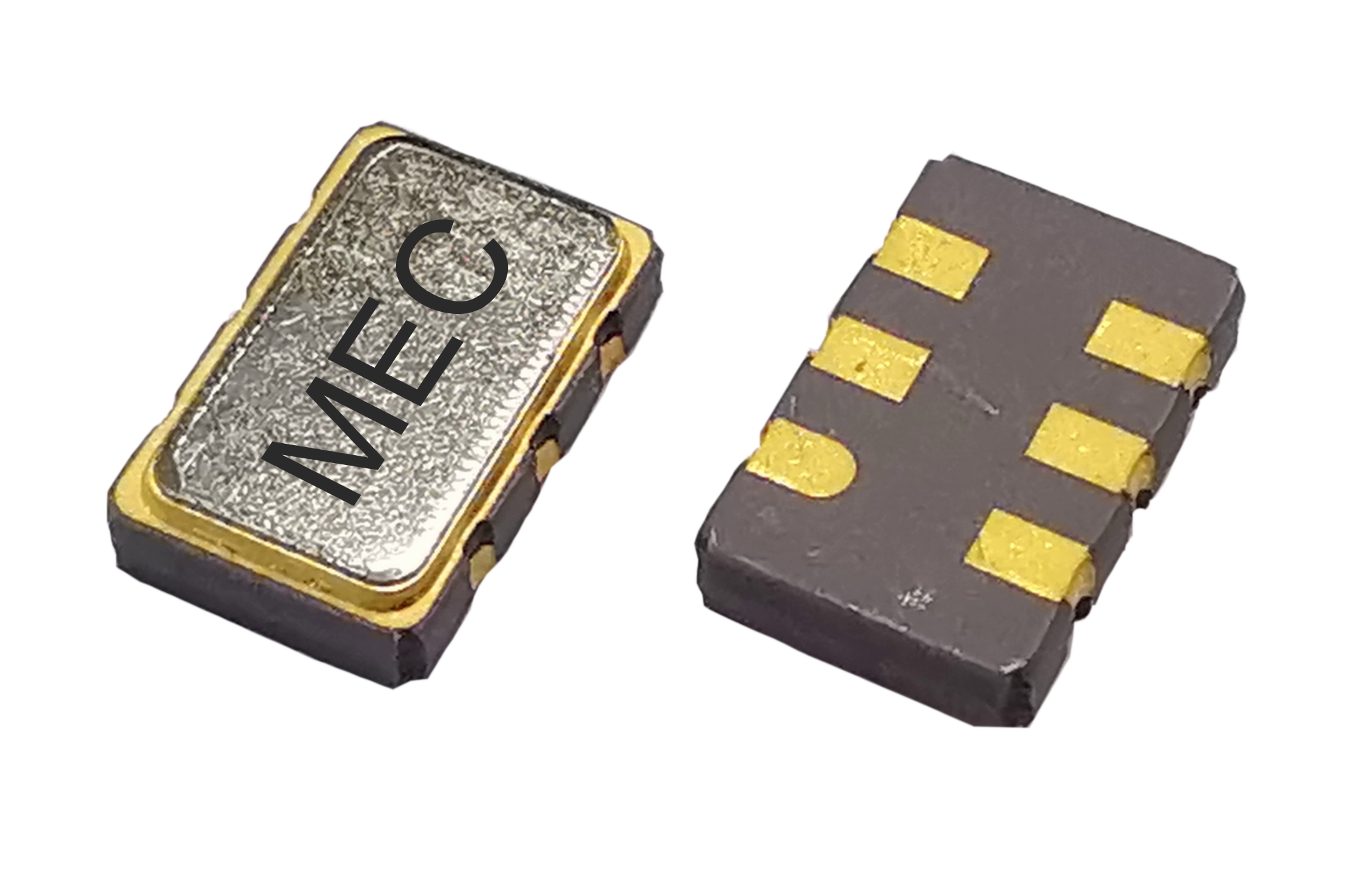

GCTQF536 |
10 ~ 250MHz | 2.5,3.3 | CMOS | 5.0 x 3.2 | 1.2 | -40 to +85 | – | |
|
– |
