Description
| Part Number | Frequency Range | Supply Voltage (V) | Output Logic | Dimensions L * W / type | Height (mm) | Operating Temperature (°C) | Datasheet | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
H14 |
312kHz ~ 50MHz, 25kHz ~ 200MHz, 187kHz~125MHz | 1.0 | CMOS | 20.2 x 12.8 | 5.08 | -40 to +85 | 1.0 | 1.2 | 1.8 | 2.5 | 3.3 | 5.0 |
H22 |
75kHz ~ 50MHz, 156kHz ~ 160MHz | 1.0 | CMOS | 2.5 x 2.0 | 0.9 | -40 to +85 | 1.0 | 1.2 | 1.8 | 2.5 | 3.3 | |
H32 |
25kHz ~ 50MHz, 25kHz ~ 160MHz | 1.0 | CMOS | 3.2 x 2.5 | 1.0 | -40 to +85 | 1.0 | 1.2 | 1.8 | 2.5 | 5.0 | |
| HPQF326 |
10 ~ 1500MHz | 2.5 | LVPECL | 3.2 x 2.5 | 1.0 | -40 to +85 | 2.5 | |||||
| HDQF576 |
10 ~ 1500MHz | 3.3 | LVPECL | 3.2 x 2.5 | 1.0 | -40 to +85 | 2.5 | 3.3 | ||||
HDQF536 |
10 ~ 1500MHz | 3.3 | LVDS | 5.0 x 3.2 | 1.2 | -40 to +85 | 2.5 | 3.3 | ||||

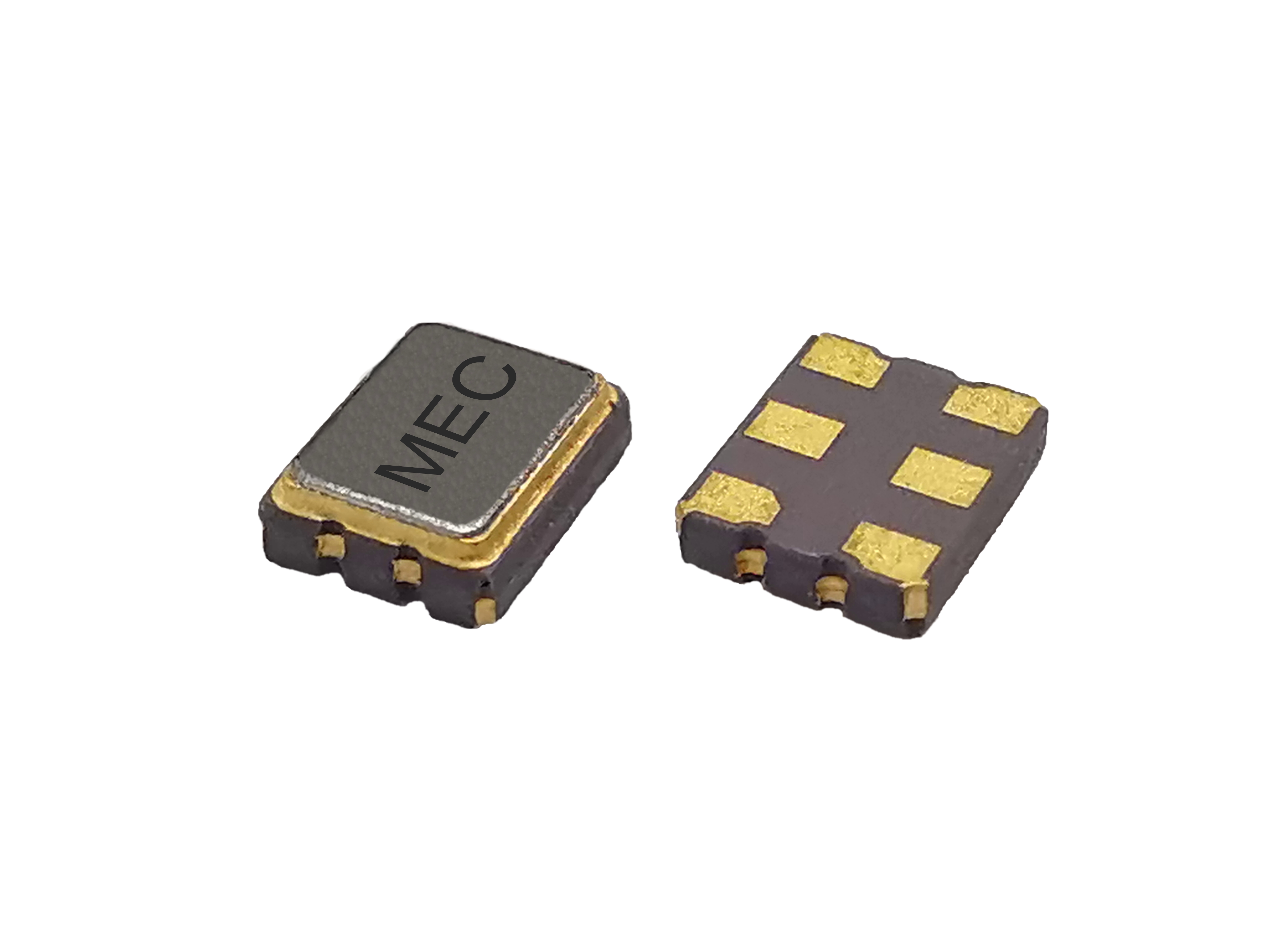

HDQF326 |
10 ~ 1500MHz | 3.3 | LVDS | 3.2 x 2.5 | 1.0 | -40 to +85 | 2.5 | 3.3 | ||||
HTQN576 |
150 ~ 250MHz | 3.3 | CMOS | 7.0 x 5.0 | 1.8 | -40 to +85 | 2.5 | 3.3 | ||||
HTQN536 |
150 ~ 250MHz | 3.3 | CMOS | 7.0 x 5.0 | 1.2 | -40 to +85 | 2.5 | 3.3 | ||||
HDJK326 |
100 ~ 250MHz | 3.3 | LVDS | 7.0 x 5.0 | 1.2 | -40 to +85 | 2.5 | 3.3 | ||||

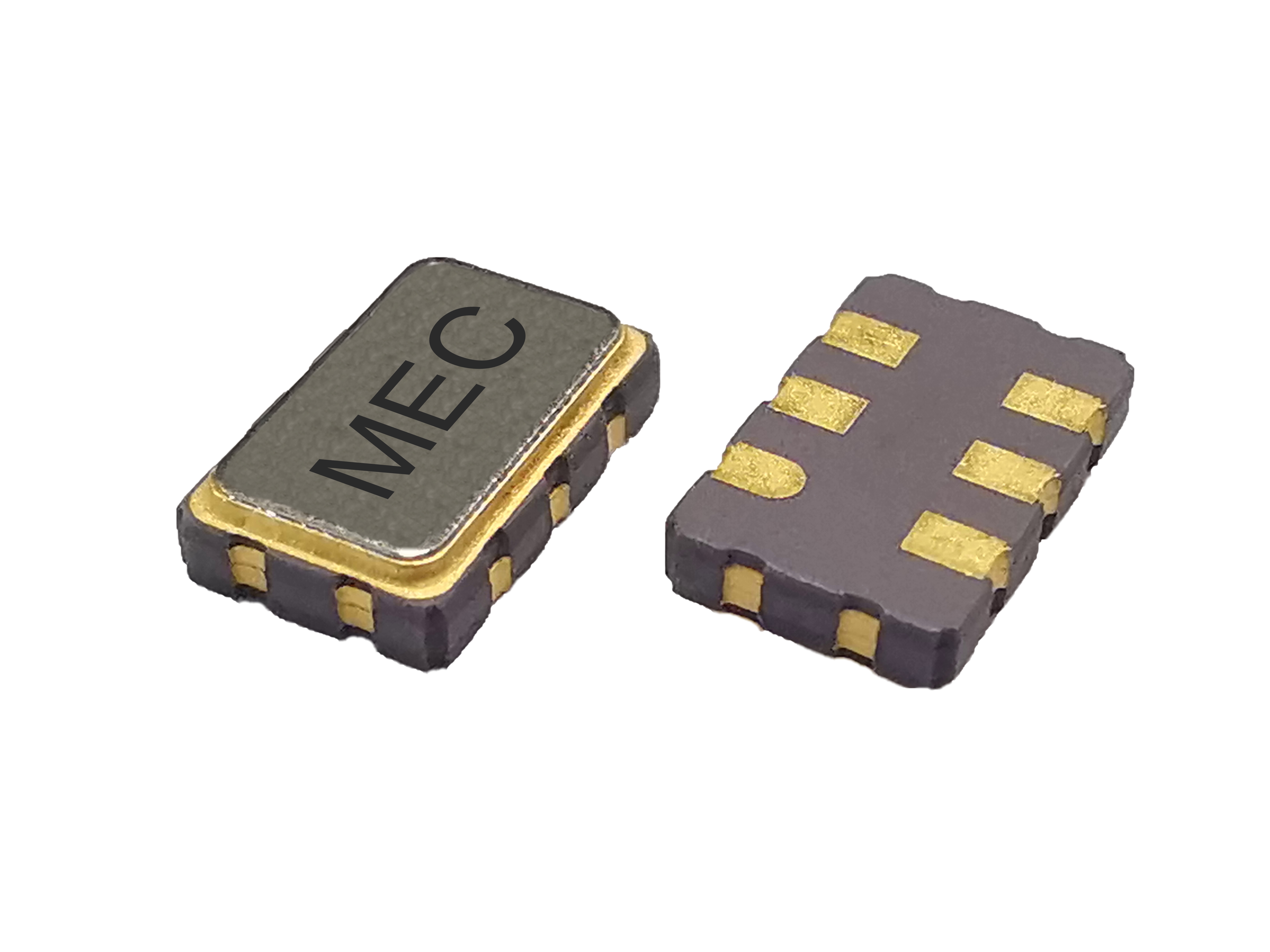

HDJK536 |
100 ~ 250MHz,100 ~ 250MHz | 3.3 | LVDS | 5.0 x 3.2 | 1.2 | -40 to +85 | 1.8 | 2.5 | 3.3 | |||

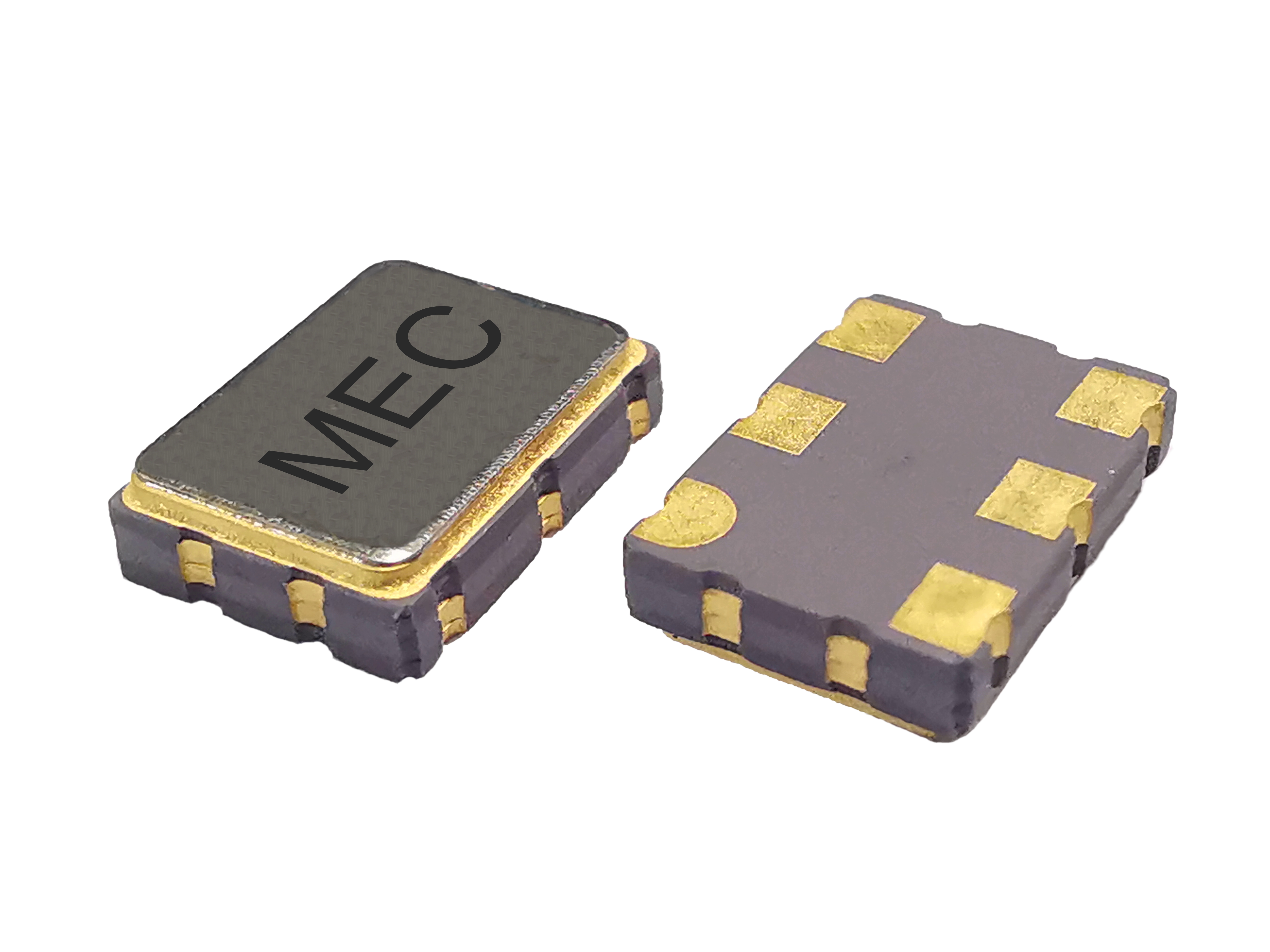

HDJK576 |
100 ~ 175MHz | 1.8 | LVDS | 7.0 x 5.0 | 1.8 | -40 to +85 | 1.8 | 2.5 | ||||
HCJK576 |
100 ~ 175MHz | 2.5 | HCSL | 7.0 x 5.0 | 1.8 | -40 to +85 | 1.8 | 2.5 | ||||
HCJK536 |
100 ~ 175MHz | 3.3 | HCSL | 5.0 x 3.2 | 1.2 | -40 to +85 | 1.8 | 2.5 | 3.3 | |||

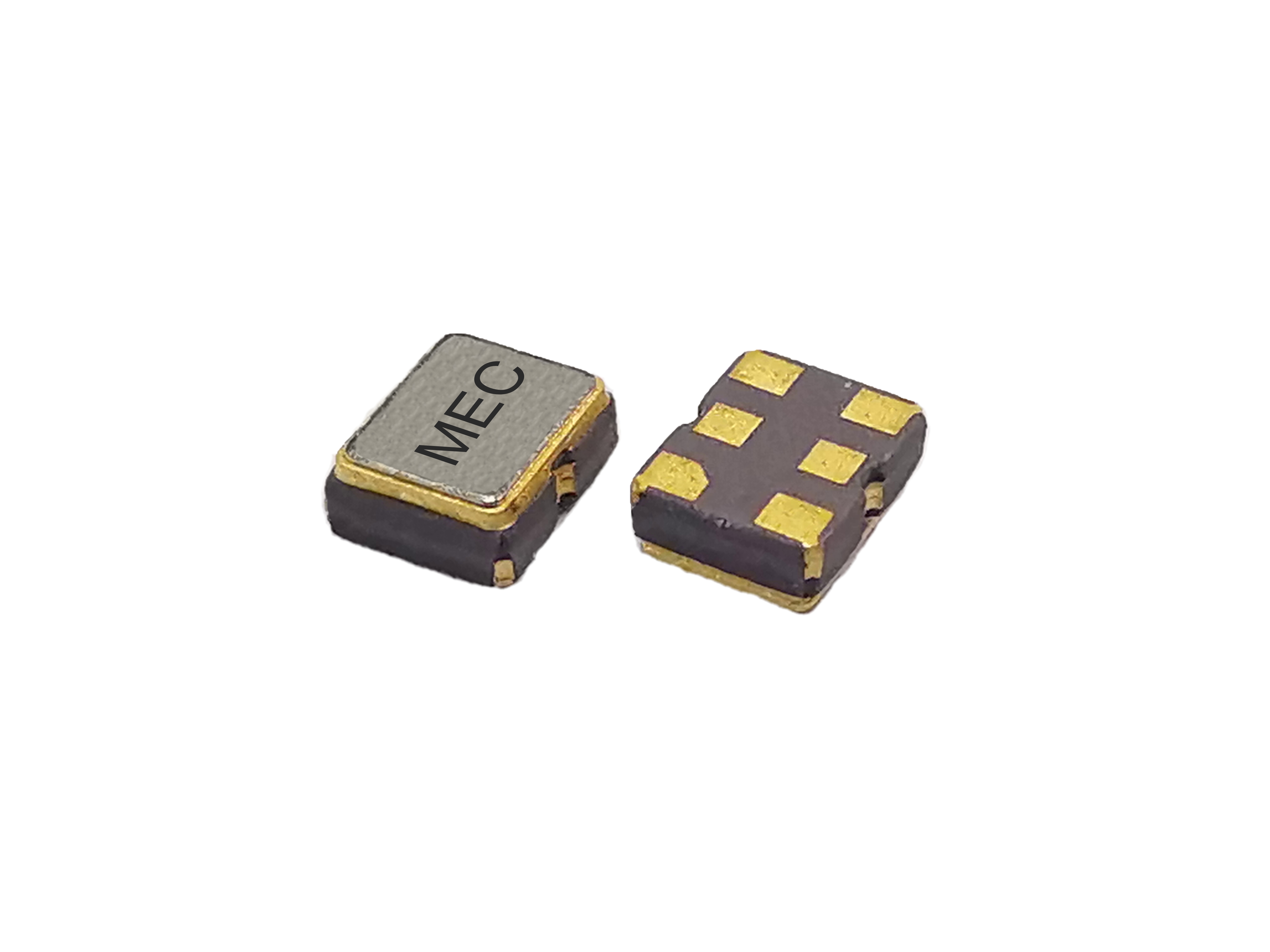

HDJK226 |
100 ~ 175MHz | 1.8 | LVDS | 2.5 x 2.0 | 1.0 | -40 to +85 | 1.8 | 2.5 | 3.3 | |||
