Description
| Part Number | Frequency Range | Output Logic | Dimensions L * W / type | Height(mm) | Temp. Stability | Supply Voltage Datasheet | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
(V)M21S |
10 ~ 52MHz | Clipped Sine Wave | 2.0 x 1.6 | 0.7 | ± 1ppm / -40 to +85℃ | 1.8 | 2.5 | 2.8 | 3.0 | 3.3 | – |
(V)M22S |
10 ~ 52MHz | Clipped Sine Wave | 2.5 x 2.0 | 0.8 | ± 1ppm / -40 to +85℃ | 1.8 | 2.5 | 2.8 | 3.0 | 3.3 | – |
(V)M32S |
8.192 ~ 52MHz | Clipped Sine Wave | 3.2 x 2.5 | 1.0 | ± 1ppm / -40 to +85℃ | 1.8 | 2.5 | – | 3.0 | 3.3 | – |
(V)M43S |
6.4 ~ 52MHz | Clipped Sine Wave | 11.4 x 9.6 | 3.0 | ± 1ppm / -40 to +85℃ | 1.8 | – | – | 3.0 | – | – |
(V)M14T |
6.4 ~ 52MHz | CMOS | 20.2 x 12.8 | 7.0 | ± 1ppm / -40 to +85℃ | 1.8 | 2.5 | – | 3.0 | 3.3 | 5.0 |
(V)M15T |
6.4 ~ 52MHz | CMOS | 20.2 x 12.8 | 7.0 | ± 1ppm / -40 to +85℃ | 1.8 | 2.5 | – | 3.0 | 3.3 | 5.0 |
(V)M39T |
6.4 ~ 52MHz | CMOS | 18.4 x 11.7 | 4.7 | ± 1ppm / -40 to +85℃ | 1.8 | 2.5 | – | 3.0 | 3.3 | 5.0 |
(V)M8T |
6.4 ~ 52MHz | CMOS | 12.8 x 12.8 | 5.5 | ± 1ppm / -40 to +85℃ | 1.8 | 2.5 | – | 3.0 | 3.3 | 5.0 |
(V)MQN574T |
10 ~ 250MHz | CMOS | 7.0 x 5.0 | 2.5 | ± 1.5ppm / -40 to +85℃ | – | 2.5 | – | – | 3.3 | – |
M321T |
9.5 ~ 60MHz | CMOS | 3.2 x 2.5 | 1.0 | ± 2.5ppm / -40 to +85℃ | 1.8 | 2.5 | – | – | 3.3 | – |
(V)MJF538Q |
15 ~ 2100MHz | CML | 5.0 x 3.2 | 1.4 | ± 2.5ppm / -40 to +85℃ | 1.8 | 2.5 | – | – | 3.3 | – |
M211T |
10 ~ 52MHz | CMOS | 2.0 x 1.6 | 0.7 | ± 2.5ppm / -40 to +85℃ | 1.8 | 2.5 | – | – | 3.3 | – |

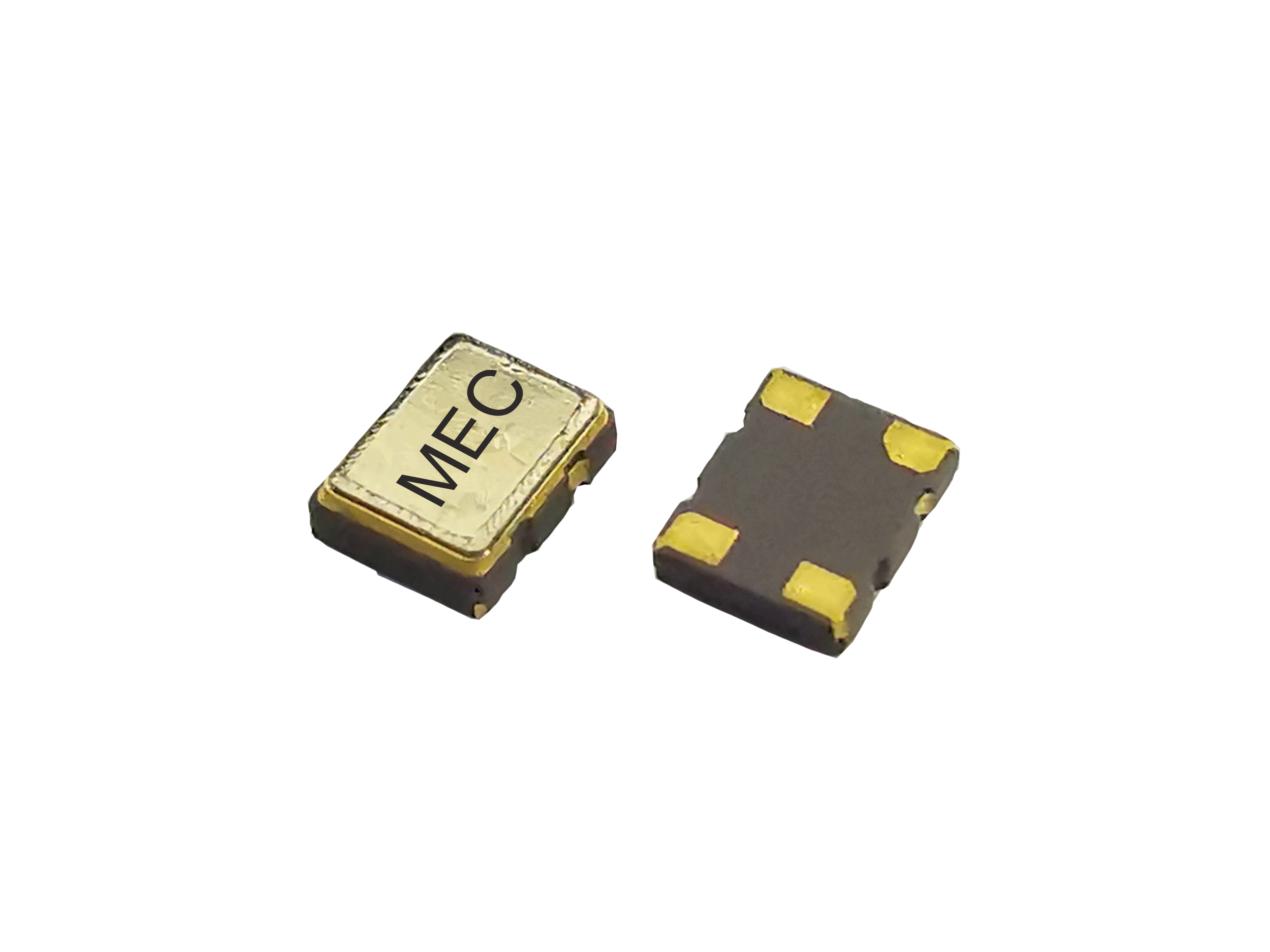

M221T |
9.5 ~ 60MHz | CMOS | 2.5 x 2.0 | 0.9 | ± 2.5ppm / -40 to +85℃ | 1.8 | 2.5 | – | – | 3.3 | – |
MVJF538Q |
15 ~ 600MHz,
15 ~ 1300MHz |
CML | 5.0 x 3.2 | 1.4 | ± 2.5ppm / -40 to +85℃ | 1.8 | 2.5 | – | – | 3.3 | – |
(V)MQF326T |
10 ~ 250MHz | CMOS | 3.2 x 2.5 | 1.6 | ± 1.5ppm / -40 to +85℃ | – | 2.5 | – | – | 3.3 | – |
(V)MQF326P |
10 ~ 1500MHz | LVPECL | 3.2 x 2.5 | 1.6 | ± 1.5ppm / -40 to +85℃ | – | 2.5 | – | – | 3.3 | – |

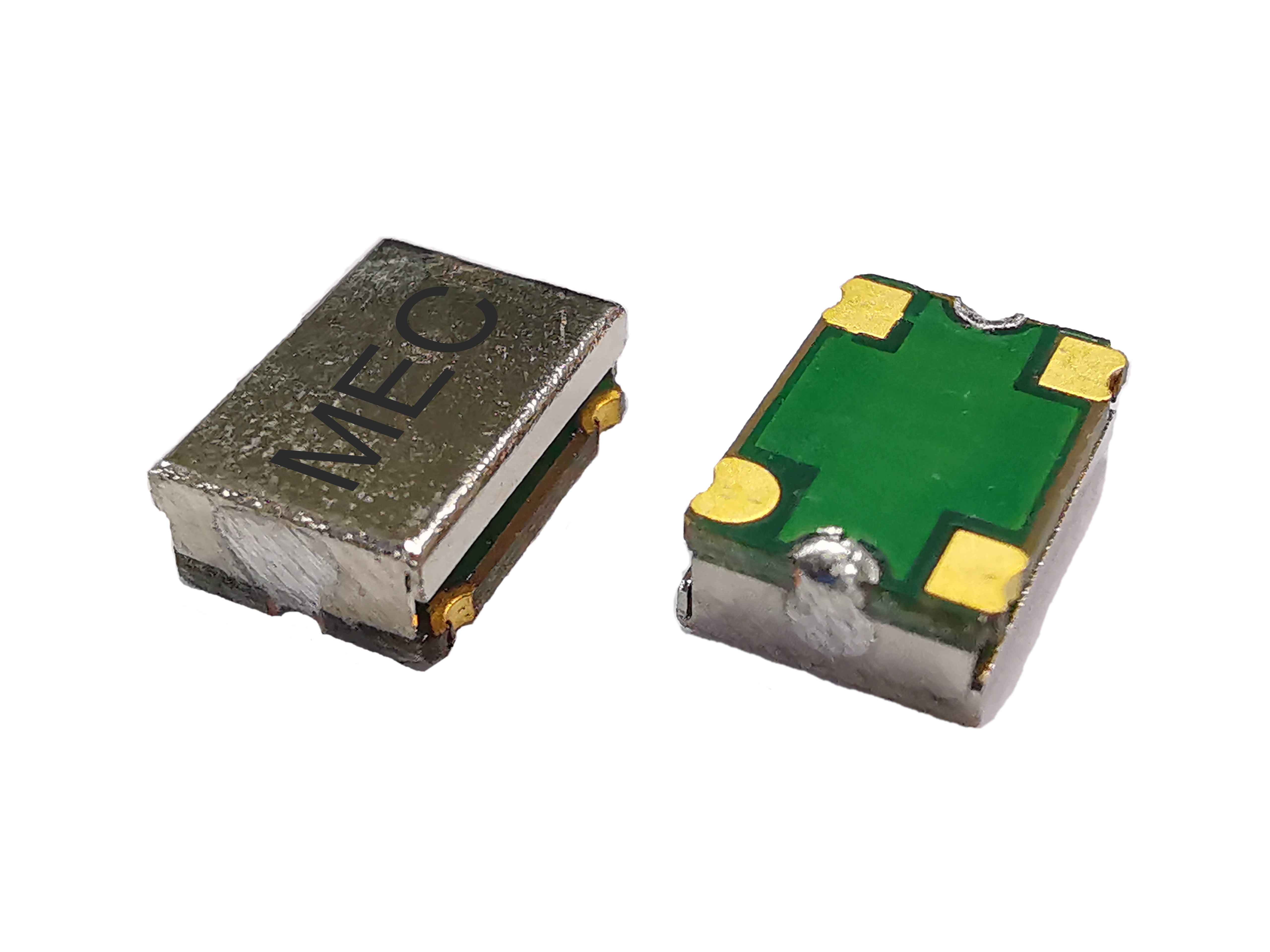

(V)MQF574T |
10 ~ 250MHz | CMOS | 7.0 x 5.0 | 2.5 | ± 1.5ppm / -40 to +85℃ | – | 2.5 | – | – | 3.3 | – |
(V)MQF326D |
10 ~ 1500MHz | LVDS | 3.2 x 2.5 | 1.6 | ± 1.5ppm / -40 to +85℃ | – | 2.5 | – | – | 3.3 | – |
(V)MJF538C |
15 ~ 700MHz | HCSL | 5.0 x 3.2 | 1.4 | ± 2.5ppm / -40 to +85℃ | 1.8 | 2.5 | – | – | 3.3 | – |
(V)MJF538P |
15 ~ 2100MHz | LVPECL | 5.0 x 3.2 | 1.4 | ± 2.5ppm / -40 to +85℃ | – | 2.5 | – | – | 3.3 | – |
(V)MJF538D |
15 ~ 2100MHz | LVDS | 5.0 x 3.2 | 1.4 | ± 2.5ppm / -40 to +85℃ | 1.8 | 2.5 | – | – | 3.3 | – |
(V)MQF576P |
10 ~ 1500MHz | LVPECL | 7.0 x 5.0 | 2.5 | ± 1.5ppm / -40 to +85℃ | – | 2.5 | – | – | 3.3 | – |
(V)MQF576D |
10 ~ 1500MHz | LVDS | 7.0 x 5.0 | 2.5 | ± 1.5ppm / -40 to +85℃ | – | 2.5 | – | – | 3.3 | – |
(V)M572T |
1.25 ~ 52MHz | CMOS | 7.0 x 5.0 | 2.3 | ± 1ppm / -40 to +85℃ | – | 2.5 | – | 3.0 | 3.3 | 5.0 |
(V)M63T |
6.4 ~ 52MHz | CMOS | 11.4 x 9.6 | 3.0 | ± 1ppm / -40 to +85℃ | 1.8 | 2.5 | – | 3.0 | 3.3 | 5.0 |
(V)M9T |
6.4 ~ 52MHz | CMOS | 12.8 x 12.8 | 5.5 | ± 1ppm / -40 to +85℃ | 1.8 | 2.5 | – | 3.0 | 3.3 | 5.0 |
ME21T |
32.768kHz | CMOS | 2.1 x 1.3 | 1.1 | ± 5.0ppm / -40 to +85℃ | 1.8 | 2.5 | – | 3.0 | 3.3 | – |
ME32T |
32.768kHz | CMOS | 3.2 x 2.5 | 1.4 | ± 5.0ppm / -40 to +85℃ | – | 2.5 | – | 3.0 | 3.3 | 5.0 |

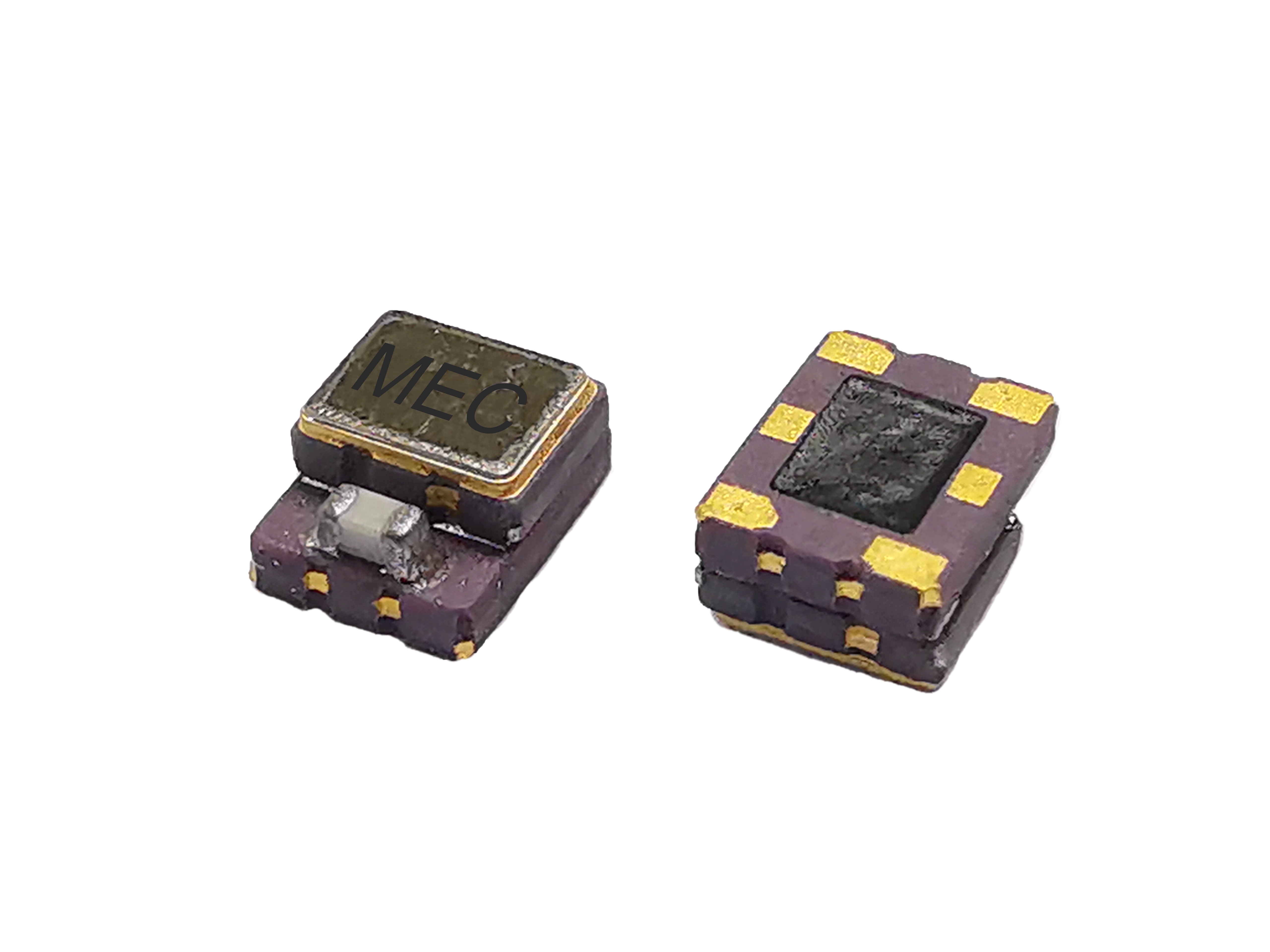

(V)MQN326D |
10 ~ 1500MHz | LVDS | 3.2 x 2.5 | 1.6 | ± 1.5ppm / -40 to +85℃ | – | 2.5 | – | – | 3.3 | – |
(V)MQN326P |
10 ~ 1500MHz | LVPECL | 3.2 x 2.5 | 1.6 | ± 1.5ppm / -40 to +85℃ | – | 2.5 | – | – | 3.3 | – |
(V)MQN326T |
10 ~ 250MHz | CMOS | 3.2 x 2.5 | 1.6 | ± 1.5ppm / -40 to +85℃ | – | 2.5 | – | – | 3.3 | – |

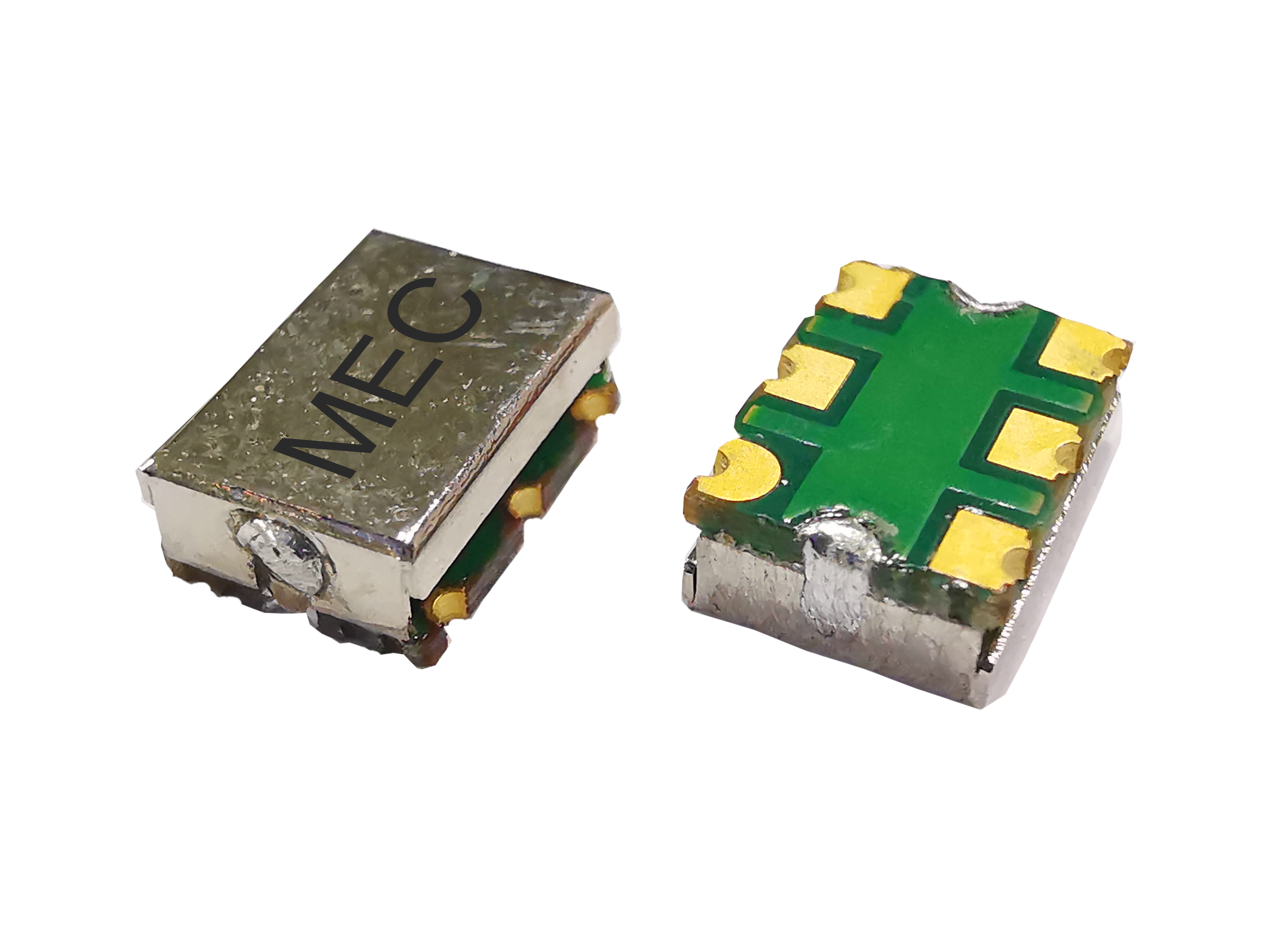

(V)MQN576D |
10 ~ 1500MHz | LVDS | 7.0 x 5.0 | 2.5 | ± 1.5ppm / -40 to +85℃ | – | 2.5 | – | – | 3.3 | – |
(V)MQN576P |
10 ~ 1500MHz | LVPECL | 7.0 x 5.0 | 2.5 | ± 1.5ppm / -40 to +85℃ | – | 2.5 | – | – | 3.3 | – |
MVJF538C |
15 ~ 600MHz | HCSL | 5.0 x 3.2 | 1.4 | ± 2.5ppm / -40 to +85℃ | 1.8 | 2.5 | – | – | 3.3 | – |
MVJF538D |
15 ~ 1300MH | LVDS | 5.0 x 3.2 | 1.4 | ± 2.5ppm / -40 to +85℃ | – | 2.5 | – | – | 3.3 | – |
MVJF538P |
15 ~ 1300MH | LVPECL | 5.0 x 3.2 | 1.4 | ± 2.5ppm / -40 to +85℃ | – | 2.5 | – | – | 3.3 | – |
